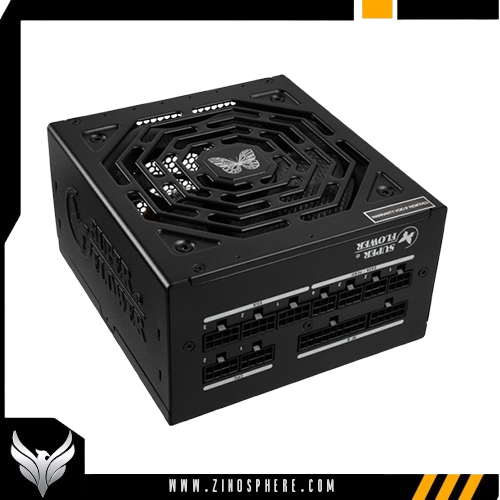

Super Flower Leadex III ATX 3.1 Gold 850W Full Modular (PCIE 5.1)
RM469.00
Specification
| Model No. | SF- 850F14HG | |
| Wattage | 850W | |
| 80+ Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) | |
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 2.52 | |
| AC Input | Frequency | 100V-240V | 60 / 50Hz , Full Range APFC | |
| Fan Size | 130mm F.D.B Fan | |
| Dimension | 160mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP | |
| Safety Certificates | cTÃœVus / TÃœV / CB / CE / FCC / RCM / BSMI / RoHS / KCC /CCC | |
| Temperature | Passed 50℃ Hot Testing | |
| Cable Wires | ||
| 20+4 Pin | Detachable | One Cable (600mm) |
| 8(4+4) Pin CPU | Two Cables (700mm) | |
| SLI (2 x PCI 6+2 Pin) | Three Cables (550+150mm) | |
| 3SATA | Three Cables (550+120+120mm) | |
| 4Molex | One Cable (550+100+100+100mm) | |
| PCIe 16 Pin | One Cable (700mm) | |
| SF-850F14HG | ||||||
| 850W | AC INPUT | 100V-240V~ 10A 60Hz/50Hz | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| Max Output Current | 20A | 20A | 70.8A | 0.5A | 3.0A | |
| Max Combined Wattage | 100W | 849.6W | 6W | 15W | ||
| 850W | ||||||
LEADEX III series PSU are 80PLUS Gold certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system. LEADEX III series PSU provides high efficiency & stable power output and come with a 13cm three-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLIâ„¢ or ATI CrossFireXâ„¢ setup.
♦ Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading improvement on +12V/ +5V/ +3.3V
3. Low Output Voltage Ripple
4. Dual Over Power Protection
♦ ECO-design
1. Auto + two levels of ECO Fan control
2. High efficiency on all rails, including 5VSB
♦ 100% Fully Modular Cabling Design For Easy Cable Management
♦ 80 PLUS ® Gold Certified for LEADEX III Gold Series
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
♦ 100% Taiwan A Grade 105°C Capacitors (Modular Backpanel)
♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V. v2.32 & EPS 12V. v2.92 Specification
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Dual Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready)
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
