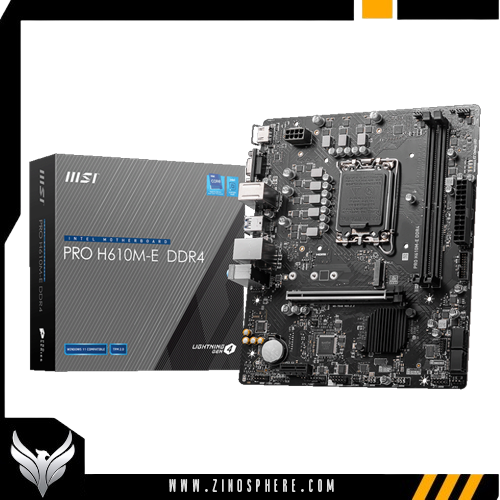

MSI H610M-E DDR4
Description
Processor
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
- Processor socket LGA1700
- Please go to www.msi.com to get the newest support status as new processors are released.
Chipset
Intel® H610 Chipset
Memory
- 2x DDR4 memory slots, support up to 64GB 1
- Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
- 1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot (From H610 chipset)
- Supports PCIe 3.0 x1
Onboard Graphics
- 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
- 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz 1 / 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
SATA Ports
- 4x SATA 6Gb/s ports (From H610 chipset)
M.2 SSD Slot
- 1x M.2 slot (Key M) (from H610 chipset)
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
Audio
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8111H 1Gbps LAN controller
Power Connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin +12V power connector
Internal USB Connectors
- 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
- 2x USB 2.0 Type-A connectors (From Hub-GL850G)
- Supports additional 4 USB 2.0 ports
Fan Connectors
- 1x 4-pin CPU fan connector
- 2x 4-pin system fan connectors
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Serial port connector
Jumpers
- 1x Clear CMOS jumper
LED Features
- 1x 4-pin RGB LED connector
- 4x EZ Debug LED
Back panel ports
- HDMI™
- VGA
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
Dimensions
- M-ATX Form Factor
- 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Additional information
| MEMORY TYPE |
DDR4 |
|---|---|
| FORM FACTOR |
mATX |
| CPU SOCKET |
AM5 |
