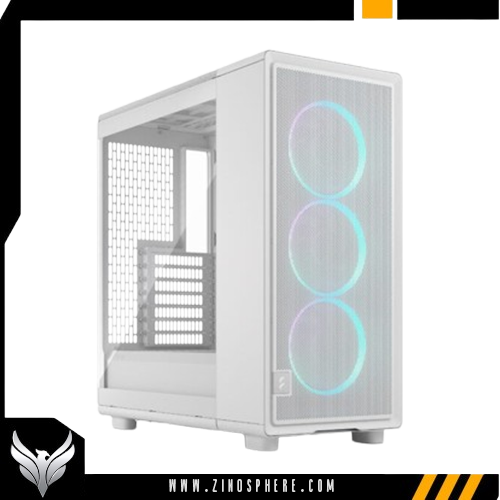

Fractal Design Epoch TG RGB ATX Case Clear Tint – White

Specifications

• 3.5″/2.5″ drive mounts
  2
• Dedicated 2.5″ drive mounts
  2
• 5.25” drive mounts
  –
• Expansion slots
  7
• Front interface
  1x USB Type-C 20 Gbps 2x USB Type-A 5 Gbps   1x Audio/Mic Combo Jack
• Total fan mounts
  6 x 120 mm or 4 x 140 mm
• Front fan
  3 x 120/2x 140 mm (3 x 120 mm Momentum fans included)
• Top fan
  2 x 120/140 mm
• Rear fan
  1 x 120 mm
• Bottom fan
  –
• Dust filters
  PSU
• Cable routing space
  30 mm
• Cable routing grommets
  Yes
• Fixed straps
  Yes, hook and loop
• Tool-less access
  Side panels, front panel, top panel
• Captive thumbscrews
  HDD brackets, SSD brackets, Side panels, PSU bracket
• Left side panel
  Steel (Solid version), Tempered Glass (TG & RGB)
• Right side panel
  Steel

Compatibility

• Power supply type
  ATX
• Motherboard compatibility
  ATX / mATX / Mini-ITX
• PSU max length
  1 HDD tray: 255 mm max 2 HDD tray: 155 mm max
• GPU max length
  Up to 372 mm with front fan mounted or up to 345 mm with front-mounted radiator
• CPU cooler max height
  170 mm
• Front radiator
  Up to 280/360 mm
• Top radiator
  Up to 240 mm
• Rear radiator
  1x 120 mm
• Bottom radiator
  –

Dimensions

• Case dimensions (LxWxH)
  447 x 215 x 469 mm
• Case dimensions w/o feet/protrusions/screws
  443.3 x 215 x 455.3 mm
• Package dimensions
  565 x 326 x 553 mm
• Net weight
  7.69 kg (Solid), 7.81 kg (TG), 7.86 kg (RGB)
• Gross weight
  9.24 kg (Solid), 9.36 kg (TG), 9.41 kg (RGB)

Other

• Package contents
  Computer case, Accessory box, Product manual
• Accessory Box content (Solid/TG/RGB)
  PSU screws — 4 pcs., Motherboard screws — 8 pcs., Motherboard standoff — 1 pc., SSD screws —16 pcs., HDD screws — 8 pcs., HDD rubber — 8 pcs., Ball catcher — 1 pc., Zip ties — 4 pcs.
• EAN
  Black Solid: 7340172709633, Black TG Light: 7340172709640, White TG Clear: 7340172709657, Black TG RGB Light: 7340172709664, White TG RGB Clear: 7340172709688
• UPC
  Black Solid: 843276109639, Black TG Light: 843276109646, White TG Clear: 843276109653, Black TG RGB Light: 843276109660, White TG RGB Clear: 843276109684
• Product Code
  Black Solid: FD-C-EPO1A-01, Black TG Light: FD-C-EPO1A-02, White TG Clear: FD-C-EPO1A-03, Black TG RGB Light: FD-C-EPO1A-04, White TG RGB Clear: FD-C-EPO1A-05
